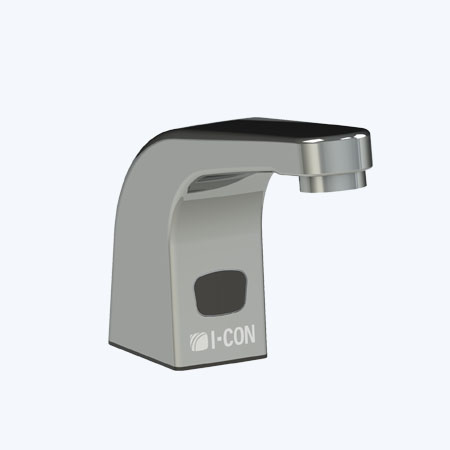

COBALT Connect™ Square Mid Body Cloud Connected Faucet

102057 : 4010
COBALT Connect™ Square Mid Body Cloud Connected Faucet I-CON EDGE® Compatible

Features and Benefits

COBALT Connect™ Sensor Faucets are Cloud based I-CON EDGE® compatible, Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Battery Operated, Polished Chrome Finish, Deck-Mounted Lead-Free Brass Mid Body Faucets.

Standard Features
  • LED display of settings, pressure, temperature, flow rate and alerts
  • Interchangeable solenoid with COBALT® series flush valves
  • Manual or remote settings adjustment of sensor range, minimum runtime, maximum runtime
  • Remote activation and temporary off mode
  • Troubleshooting LED indicator lights
  • Automatic sensor range adjustment
  • Quick disconnect components
  • Low profile controller with easy access
  • Removable water tight battery access
  • 24VAC with standard AA battery backup or standard AA battery only
  • Water supply connections with flexible high-pressure hose and strainer
  • Adjustable hot water limit setting (with optional mixer)
  • Mounting hardware included
  • ADA compliant
  • LEED credits, low lead, CalGreen, CEC, cUPC compliant
  • 3 year warranty
Advanced Features
  • Email summary reports of water usage, battery strength, savings and more
  • Live email alerts of pressure anomalies, high/low temperature, and maintenance required
  • Predictive maintenance reporting calculated using live data and diagnostics
  • FIRMWARE programming for new software and feature updates
  • Real time clock for schedules and accurate reporting
  • Wireless settings adjustment onsite or remotely from anywhere
  • Smart-mode changes for enhancement customer experience and battery power savings
  • Selectable and customizable profiles for user experience and water savings
Electrical Specifications
  • Sensor Adjustment Range: 2"-14" (51-356mm) Minimum
  • Runtime: 0.5 seconds, Maximum Runtime: 90 seconds
  • Flow Rate: 0.35 GPM (1 Lpm), 0.5 GPM (1.8 Lpm), 1.5 GPM (5.6 Lpm)
  • Spray Type: Aerated
  • Sensor Type: Infrared
  • Mounting Type: Single Hole
  • Power Supply: Low Voltage Transformer or Battery
  • Temperature Mixer: Mixer Not Included
  • Finish: Polished Chrome
  • Factory Default Maximum Runtime: 30 seconds
  • Factory Default Minimum Runtime: 2 seconds
Recommended Specification

Faucet shall include brass body, quick-connect components, solenoid interchangeable with Flush Valve assembly, removable water tight battery cartridge, pressure and temperature sensors, flexible power supply (AC/Battery Power), on-board battery backup ability, allow adjustment of settings wirelessly at Faucet via Apple or Android smartphones and remotely from anywhere via Cloud service, allow for reporting, logging, and Alerts capabilities via Email and Cloud service, and have the ability to replace and update microprocessor's firmware via Cloud service.

Designed and Assembled in the USA badge Handicap badge
