101316

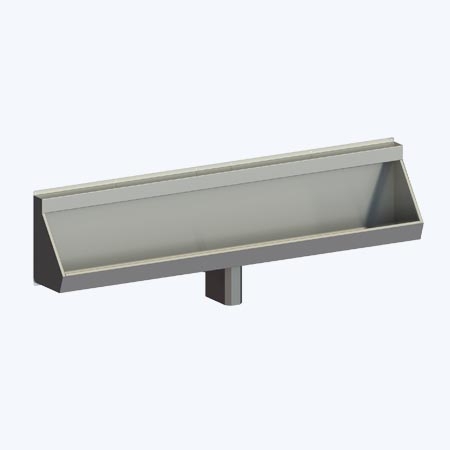

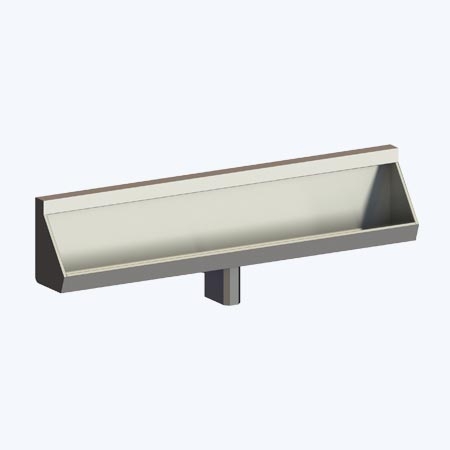

84" Trough Washdown Urinal
×
![]()
101316
84" Trough Washdown Urinal
Features
- 14-gauge type 304 stainless steel
- Seamlessly welded
- Satin finished surfaces
- Washdown flushing action with self-draining, flushing rim
- Flush connection is 1-1/2" NPT male
- Removable, high volume, stainless steel, beehive strainer
- Various waste options available based on access type
- Vandal-resistant, P-trap enclosure
- Anchoring locations vary based on length of urinal (minimum 4)
- Furnished with necessary fasteners for proper mounting (Rear access only)
- Note: Optional wall sleeve or metal template is recommended for all installations with required wall openings
Jump to Section
I-CON urinals are seamlessly welded, 14-gauge type 304 stainless steel. Exposed surfaces have satin finishes. Rear access fixtures require a wall opening and chase area for installation and maintenance. The urinal features a washdown flushing action with a self-draining flush rim. Fixture has a vandal-resistant, P-trap enclosure. Exposed fasteners are tamper-resistant stainless steel.
