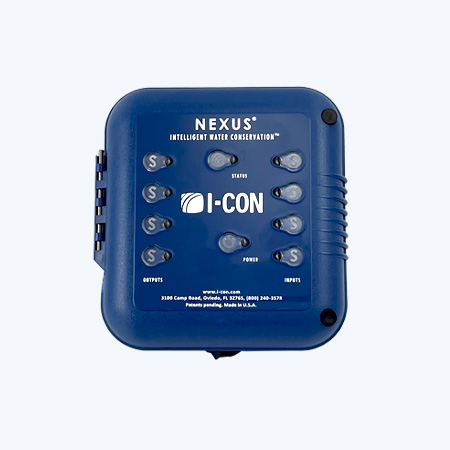

NEXUS® 4 I/O AC Communication-Capable Controller
×
![]()
100192
NEXUS® 4 I/O AC Communication-Capable Controller
Features
- New water-resistant enclosure
- Designed for penal use and other vandal prone areas to conserve potable water consumption
- 24VAC power with low power consumption
- Electrical telephone plug type connectors for sensor and solenoid
- Ability to be remotely located up to three-hundred (300) feet from the associated fixtures
- UL listed (E308296) and independently tested
- Adjustable program times without dip switches
- Power switch on the exterior of the housing
- Amber power LED illuminates with power
- Green LEDs illuminate at each port to show the port is active
- Red LEDs indicate block times are in effect
- Power surge protection and voltage spike protection
- Nominal current draw: 90 mA
- Current draw per active port: 180 mA
Jump to Section
Standalone or communicating four input / four output controller used to control up to four touch sensors and valves. Multiple controllers can be networked and linked into an I-CON ENVISAGE® powered computer system. Adjust runtimes and lockouts with a NEXUS® Time Adjuster or any ENVISAGE® product.
Literature
Certifications
Accessories
100971
Wired Communication Add-On Module
100134
TruFIRE® 24VAC Solenoid Extension Cable
100215
TruTOUCH® Force-Activated Touch Sensor
100111
24 Volt AC Box Mount Transformer
100089
Core Drill Assembly for TruTOUCH® Sensor
100417
Wireless Communication Add-On Module
100137
TruFIRE® 24VAC Solenoid
100137 : 2' : HF
TruFIRE® High Flow 24VAC Solenoid
100146
TruTOUCH® Force-Activated LED Touch Sensor
100476
28 Volt AC Plug-In Transformer
100267
TruTOUCH® Force Activated Sensor Extension Cable
100236
NEXUS® Time Adjuster
