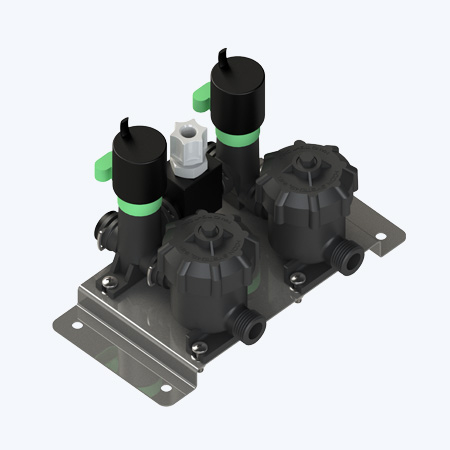

ELEMENT® Dual Temperature Manifold Valve for Single Shower
×
![]()
104402
ELEMENT® Dual Temperature Manifold Valve for Single Shower
Features
- Standard pressure compensating 2.0 GPM flow regulator
- Check stop with retaining clips for added support and reliability
- No metering diaphragms to fail and clog
- Engineered non-metallic polymer valve body for advanced corrosion resistance
- Ability to activate using manual bypass handle
- All solenoids are interchangeable with other I-CON valves reducing spare parts
- Positive valve shut-off after pressure loss eliminating continual running of valve
- Maximum water temperature of 120° F & maximum pressure of 100 PSI
- 1/2" NPT supply connections and 3/8" OD tubing outlet
Jump to Section
Shower manifold valve for use with hot and cold water. Supplies one showerhead. Includes pressure compensating 2.0 GPM flow regulator as standard.
