100690

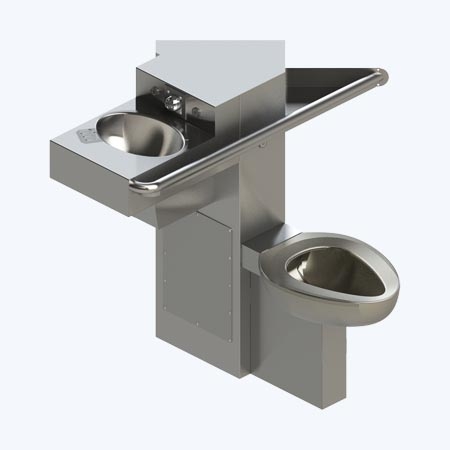

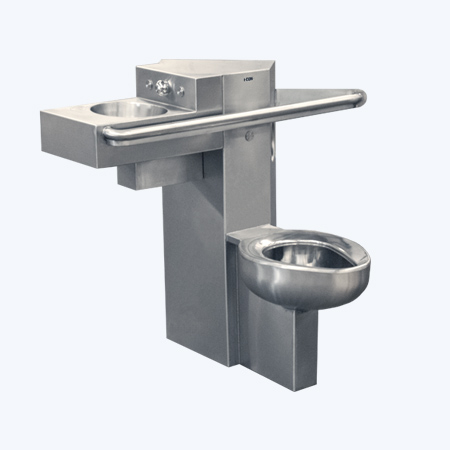

ADA Compact Combination Fixture
100690
ADA Compact Combination Fixture
Features
- 14-gauge type 304 stainless steel
- Seamlessly welded
- Satin finished surfaces
- Mirror finished, integral, elongated seat
- Oval lavatory basin with fast drain
- 4" high backsplash
- Air-circulating, self-draining soap dish
- Blowout flushing action with self-draining, flushing rim
- Flush connection is 1-1/2" NPT female (Rear access only)
- Flush connection is 1-1/2" NPT male (Front access only)
- Various waste options available based on access type
- ADA seat height of 18"
- Grab bar
- Sound dampening, fire-resistant cabinet
- Removable access panels secured with tamper-resistant fasteners (Front acccess only)
- 6 anchoring locations
- Furnished with necessary fasteners for proper mounting (Rear access only)
- Note: Optional wall sleeve or metal template is recommended for all installations for required wall openings
I-CON combination fixtures are seamlessly welded, 14-gauge type 304 stainless steel. Exposed surfaces have satin finishes except for the mirror finished, integral, elongated seat. Rear access fixtures require a wall opening and chase area for installation and maintenance. Combination fixtures are furnished with an oval basin, integral strainer, 4" high backsplash, and an air-circulating, self-draining soap dish. The toilet features a blowout flushing action with a self-draining flush rim. The fixture interior is coated with a sound dampening, fire-resistant material. The fixture meets ADA requirements when installed according to ADA guidelines.
I-CON toilets meet or exceed ASME A112.19.3 and CSA B45.4 requirements. The toilets are designed to withstand a 5,000 lbs. load without permanent deflection and damage, and the trap allows for a 2-1/8" ball to pass. A 1" supply line with a minimum of 25 PSI flow pressure is required. When used with an I-CON MOMENTUM® flush valve, the fixture is capable of flushing as low as 1.0gpf. If used with other flush valves, the fixture is capable of flushing as low as 1.28gpf.
